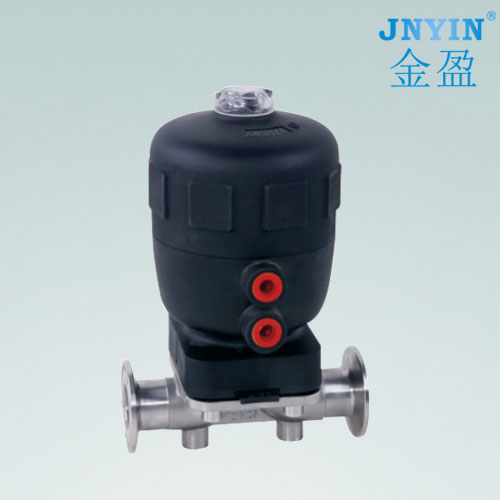

D5 Series pneumatic diaphragm valve

Column：TECHNICAL KNOWLEDGE Time：2023-11-17
Nominal diameter: DN10~80
Driving mode：Pneumatic, normally closed(1), normally open(2), and double direction(3)


Technical parameter

Nominal diameter: DN10~80
Driving mode：Pneumatic, normally closed(1), normally open(2), and double direction(3)
Nominal pressure：10bar(diaphragm is EPDM or FPM) 6bar(diaphragm is PTFE,one side shall be used)
Medium temperature：150℃, (According to the conditions of use)
Control pressure：4-6bar(control way 1), 3-4bar(control way 2 to 3
Body material：Stainless steel1.4435=316L
