公稱壓力 Nominal pressure

PN10.0、16.0、20.0、25.0MPa

連接方式 Connection mode

法蘭式、螺紋連接 Flanged and threaded connection

閥體形式 Type of body

三段式鍛造閥體 Three-stage forged valve body

電源電壓 Supply voltage

AC110V、AC220V、AC380V（其他定制DC24等）

AC110V, AC220V, AC380V (other customized DC24, etc.)

動作范圍 Range of motion

0～90°

閥芯結構 Valve core structure

O型球體閥芯

O-Spherical Valve Core

適用介質 Applicable medium

水、蒸汽、環保處理、腐蝕性介質等

Water, steam, environmental protection treatment, corrosive media, etc

閥體材質 Body material

碳鋼、不銹鋼304、316

Carbon steel, stainless steel 304, 316

控制方式 Control mode

開關切斷式(兩位開關控制)、智能調節型(4-20mA模擬信號)

Switch-off (two-switch control) and intelligent regulation (4-20mA analog signal)

管螺紋

Pipe thread

尺寸 Size(mm)

管螺紋

Pipe thread

尺寸 Size(mm)

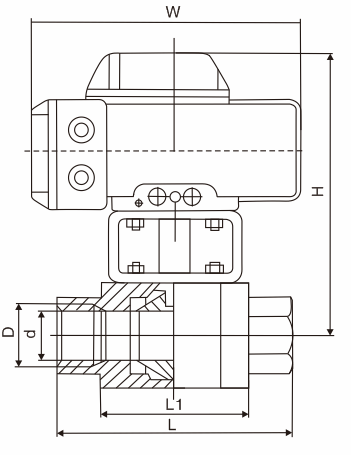

d

L

H

W

E

H

W

SW

L

8

1/4"

11

70

43

108

42.5

-

-

-

-

70

10

3/8"

11

70

43

108

42.5

-

-

-

-

-

15

1/2"

11

85

43

108

42.5

1/2"

66

130

41

85

20

3/4"

14

95

45.5

146

47.5

3/4"

77

180

46

95

25

1"

21

105

59.5

146

52.5

1"

82

180

55

105

32

1 1/4"

25

120

64.5

146

60

1 1/4"

115

300

70

120

40

1 1/2"

32

130

76

254

65

1 1/2"

120

300

80

130

50

2"

38

150

81

254

75

2"

130

300

100

150
