氣動硬密封蝶閥
氣動硬密封蝶閥
公稱壓力:1.0~2.5MPa
適用溫度:-40℃～200℃
適用介質:水、蒸汽、油品、硝酸類、醋酸類等
執行標準:GBT/12238,GB12221,GB9113,GB9131,GB13927
主要性能參數
公稱通徑DN (mm) Nominal diameter | 50-800 | |||||||
公稱壓力PN( Mpa) Nominal pressure | 1.0 | 1.6 | 2.5 | |||||
公稱壓力PS( Mpa) Nominal pressure | 強度試驗 Strength test | 1.5 | 2.4 | 3.75 | ||||
密封試驗 Seal test | 1.1 | 1.76 | 2.75 | |||||
材料 Material 材料代號 Material code | C | P | R | |||||
主要零件 Main parts | 閥體 Body | WCB | ZG1Cr18Ni9Ti | ZG0Cr18Ni12Mo2Ti | ||||
球體 Sphere | WCB | ZG1Cr18Ni9Ti | ZG0Cr18Ni12Mo2Ti | |||||
閥桿 Valve stem | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti | |||||
密封圈 Sealing ring | 不銹鋼 Stainless steel | |||||||
填料 Packing | 聚四氟乙烯 Teflon 柔性石墨 Flexible graphite | |||||||
適用工況 Applicable condition | 適用介質 Applicable medium | 水、蒸汽、油品 Water,steam,oil | 硝酸類 Nitric acids | 醋酸類 Acetic acid | ||||
適用溫度 Suitable temperature | -40℃～200℃ | |||||||
執行器 Actuator | 型號 Model | GT或AW系列等 GT or AW series, etc | ||||||
氣源壓力 Air pressure | 0.3-0.7MPa | |||||||
執行標準 Execution standard | 設計制造 Design and manufacture | 結構長度 Structural length | 法蘭尺寸 Flange size | 壓力溫度 Pressure temperature | 試驗檢驗 Test test | |||
GBT/12238 | GB12221 | GB9113 | GB9131 | GB13927 | ||||

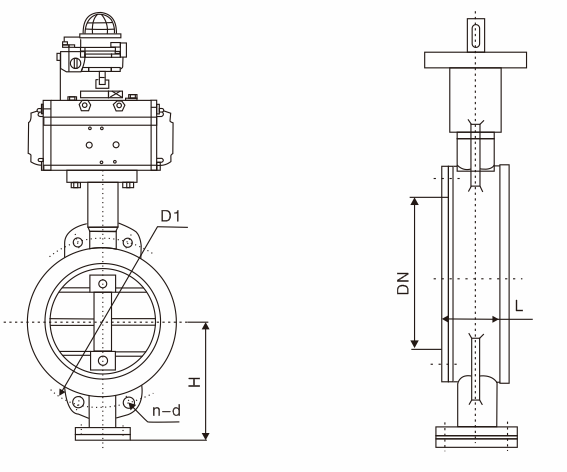

主要外形連接尺寸
公稱通徑DN (mm) Nominal diameter | 50-800 | |||||||
公稱壓力PN( Mpa) Nominal pressure | 1.0 | 1.6 | 2.5 | |||||
公稱壓力PS( Mpa) Nominal pressure | 強度試驗 Strength test | 1.5 | 2.4 | 3.75 | ||||
密封試驗 Seal test | 1.1 | 1.76 | 2.75 | |||||
材料 Material 材料代號 Material code | C | P | R | |||||
主要零件 Main parts | 閥體 Body | WCB | ZG1Cr18Ni9Ti | ZG0Cr18Ni12Mo2Ti | ||||
球體 Sphere | WCB | ZG1Cr18Ni9Ti | ZG0Cr18Ni12Mo2Ti | |||||
閥桿 Valve stem | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti | |||||
密封圈 Sealing ring | 不銹鋼 Stainless steel | |||||||
填料 Packing | 聚四氟乙烯 Teflon 柔性石墨 Flexible graphite | |||||||
適用工況 Applicable condition | 適用介質 Applicable medium | 水、蒸汽、油品 Water,steam,oil | 硝酸類 Nitric acids | 醋酸類 Acetic acid | ||||
適用溫度 Suitable temperature | -40℃～200℃ | |||||||
執行器 Actuator | 型號 Model | GT或AW系列等 GT or AW series, etc | ||||||
氣源壓力 Air pressure | 0.3-0.7MPa | |||||||
執行標準 Execution standard | 設計制造 Design and manufacture | 結構長度 Structural length | 法蘭尺寸 Flange size | 壓力溫度 Pressure temperature | 試驗檢驗 Test test | |||
GBT/12238 | GB12221 | GB9113 | GB9131 | GB13927 | ||||
